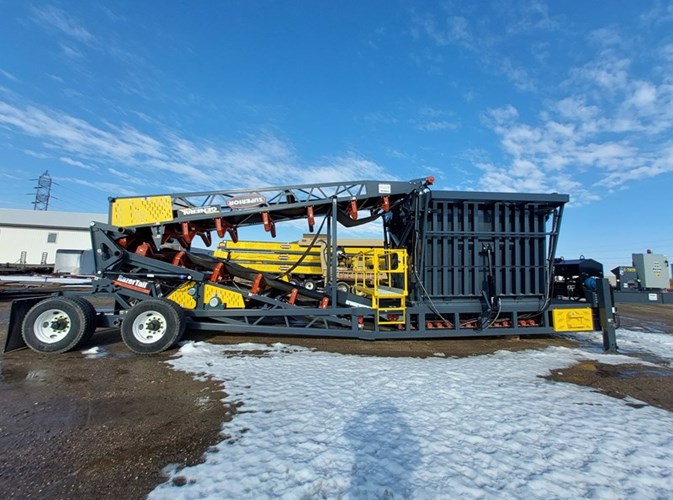

2025 Superior Truck Unloader 48RZTU
Fields with asterisks * are required.
Print This Page
Description
SUPERIOR TRUCK UNLOADER
Inventory ID
E00071829
Serial
2697018
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: E00071829
- Status: On Rent
- Make: Superior
- Model: 48RZTU
- Year: 2025
- Serial#: 2697018
Notes
- SUPERIOR 48" RAZERTAIL TRUCK UNLOADER EQUIPPED AS PER BELOW:
- TRUCK LOAD AREA:
- GRATE: 10- X 5- OUTSIDE DIMENSION
- LOAD AREA CONSTRUCTION: FLAT BAR WITH 5" WIDE OPENINGS
- SELF-CLEANING RAMPS: HINGED ON EACH SIDE OF THE GRATE FOLD UP FORCLEANING
CYCLE AFTER TRUCK IS OFF RAMP
- RAMP BULKHEAD: 10- WIDE BY 8-4" LONG FOLD HYDRAULICALLY FOR ROAD TRANSPORT
- RAMP: ELIMINATE EARTHEN RAMPS WITH 16- EXTENDED TRI-FOLD STEEL RAMPS EACH
SIDE FROM SELF-CLEANING RAMPS TO GRADE HYDRAULICALLY FOLD INTO
HOPPER AREA FOR TRANSPORT - UNLOADING CONVEYOR:
- SIZE: APPROXIMATELY 48"X 63-
- DISCHARGE HEIGHT: FOLDING CONVEYOR WITH 3 POSITION ADJ HEIGHT MAXIMUM OF
12.5- FROM BOTTOM OF DISCHARGE HOOD
- FRAME: 30" DEEP TRUSS
- DRIVE: CLASS I SINGLE WRAP
- GEAR REDUCER: SHAFT MOUNT WITH BACKSTOP
- MOTOR: 50HP 1800 RPM TEFC
- V-BELT DRIVE: WITH DRIVE GUARD
- CAPACITY: 1000 STPH OF 100 PFC MATERIAL 1.5" MINUS SPHERICAL LUMPS
- BELT SPEED: 210 FPM
- FLOW CONTROL: ADJUSTABLE SLIDE GATE
- DISCHARGE HOOD: TO FEED 36" OR GREATER BELT WIDTH REMOVED FOR SHIPMENT
- SUPERIOR IDLERS: CEMA C 5" DIAMETER ROLLS SEALED FOR LIFE BALL BEARINGS
- LOAD AREA: 5" DIAMETER FLAT STEEL IDLERS CLOSE SPACING
- TROUGH: 35 DEGREE EQUAL STEEL ROLLS ON 4- SPACING
- RETURNS: FLAT STEEL ROLLS ON 10- SPACING
- DRIVE PULLEY: 20" DIAMETER CERAMIC LAGGED DRUM
- SNUB PULLEY: 18" DIAMETER CEMA CHEVRON›¼® WING
- TAIL PULLEY: 12" DIAMETER MD CHEVRON›¼® WING
- HEAD PULLEY: 16" DIAMETER PLAIN STEEL MD DRUM
- SHAFTS: TURNED AND POLISHED
- BEARINGS: INCLUDED
- TAKE UPS: SCREW TYPE
- BELTING: 3 PLY 3/16 X 1/16 330 PIW
- BELT SPLICE: FACTORY VULCANIZED BELT SPLICE
- BELT SCRAPER: SUPERIOR CLICK TENSIONING EXTERRA›¼® PRIMARY BELT SCRAPER - CHASSIS:
- CHASSIS CONSTRUCTION: WELDED STEEL TUBE
- AXLE: TANDEM WITH SINGLE 315/80RX22.5 TIRES
- HITCH: FIFTH WHEEL
- BRAKES: COMPLETE AIR BRAKE PACKAGE
- LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
-MUD FLAPS: INSTALLED BEHIND TRANSPORT WHEELS
- LANDING JACKS: CRANK-DOWN - HYDRAULICS:
- POWER UNIT: 20 HP ELECTRIC PUMPING UNIT
- HYDRAULIC RAMPS: RAISE AND LOWER
- HYDRAULIC CONVEYOR FOLD: 25- HYDRAULIC HEAD END FOLD - ADDITIONAL SPECIFICATIONS:
- VOLTAGE: 480 V / 3 PH / 60 HZ - 1800RPM
- ELECTRICAL: ENCLOSURE WITH MAIN DISCONNECT CIRCUIT BREAKER AND PUSH BUTTON
ON/OFF SWITCHES WITH RAMP AUTO-CYCLE PLC (IF APPLICABLE) MOUNTED TO THE
CHASSIS AND WIRED TO MOTORS
- REMOTE CONTROL: WIRELESS REMOTE CONTROLS BELT DRIVE HYDRAULIC UNIT AND RAMP
OPERATIONS
- 100 FEET OF MAIN POWER CORD
- OPERATOR PLATFORM: WALKWAY AND HANDRAILS OVER CONVEYOR ON BOTH SIDES OF HOPPER
AREA FOR OPERATOR WORKSTATION AND INSPECTION PLATFORM
- PAINT: 1 COAT PRIMER 1 COAT FINISH ENAMEL SUPERIOR GRAPHITE GRAY (12-00636)
- GUARD PAINT: YELLOW
- IDLER PAINT: POWDER COATED SUPERIOR ORANGE
- PATENTS: UNIT INCLUDES PATENTS
- OWNER-S MANUAL: (1) COPY INCLUDED FOR OPERATION AND MAINTENANCE
- SHIPPING MODE: STANDARD DOMESTIC SHIPPING - - GUARDING: FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED
